ADOR - CHAMP MIG-400

The new world class inverter based GMAW welding outfit

champ mig 400

Champ Mig 400 is IGBT inverter based welding outfit suitable for GMAW applications. The IGBT Power module, ferrite core and fast recovery diode are used as key device for power conversion and transmission to assure better efficiency and performance.

red_btn Inverter based digitally controlled GMAW outfit

red_btn High efficiency and high power factor - resulting energy saving

red_btn Enhanced Reliabilty due to SMD technology

red_btn Auto "Weld Stop" when welding torch is taken away from weld job

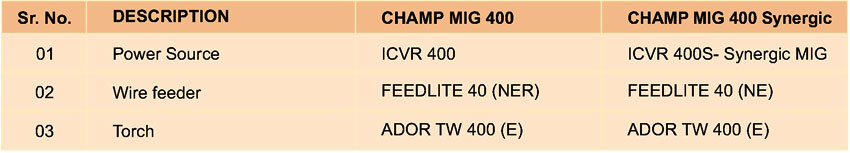

Details of Complete System

champ 400 data

Salient Features

red_btn Digital Panel for adjusting the welding paramerters

red_btn 30% more Energy efficient than conventional machines.

red_btn Maximum power factor is 0.94

red_btn Excellent dynamic response enables superior arc characteristics.

red_btn 2T, 4T operating modes

red_btn Electronic choke adjustment for better arc control

red_btn Crater voltage and crater current adjustment through digital panel.

red_btn Unique feature of Fresh Tip Transfer (FTT) to avoid globlue formation.

red_btn Automatic "Weld Stop" facility.

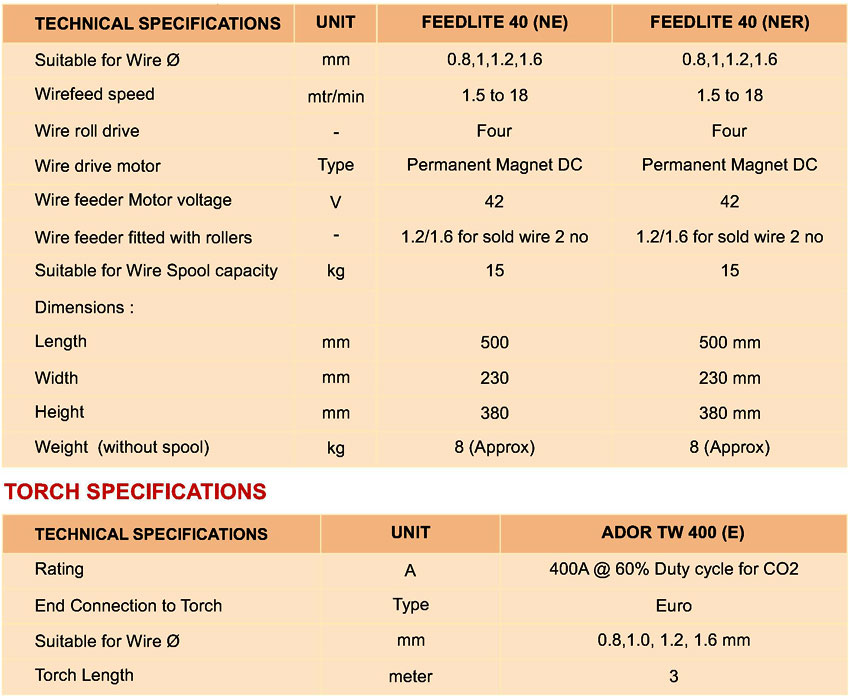

Wire Feeder Specifications

champ400 speci
