Esab

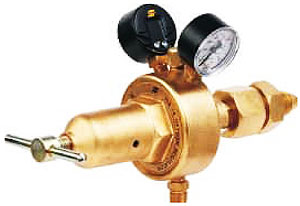

ESAB IOX -14 Single Stage Oxygen Regulator

For extra high performance, this regulator is designed and engineered to a high standard of excellence. With the unique safety and sophistication, this regulator can meet service demands where high flow-oxygen is required. These regulator are suitable for heavy cutting, thermic lancing and light scarfing. Also they are suitable for use with cylinders and pipelines.

Imported safety pressure gauges designed for 300 bar service pressure, confirming to ISO5171 standards.

esab_oxy_regulator

red_btn Maximum Inlet Pressure 300 bar

red_btn Maximum Outlet Pressure 14 bar

red_btn Maximum Flow (Cylinder) 3000 LPM

red_btn Maximum Flow (Pipeline) 2594 LPM at 14 bar

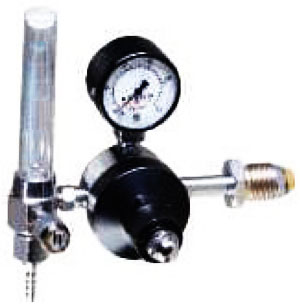

Single Stage Argon Flowmeter Regulator

argon flowmeter regulator

This is a single stage flowmeter regulator, which provides precise regulation and measurement of gas flow. This is well suited for a wide variety of industrial uses.

red_btn Service Pressure : 200 bar

red_btn Rated flow : 25 lit/min.

red_btn Inlet connection : Thread EXT-5/8" BSP RH.

red_btn Outlet connection : Thread EXT-3/8" BSP RH.

red_btn Preset Type : Provides accurate control of gas pressure to the flowmeter.

red_btn Imported safety pressure gauges designed for 250 bar pressure, confirming to ISO    2171 standards.

red_btn Body : Chrome plated

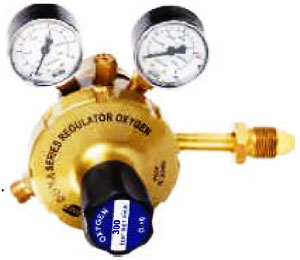

Dura Series Regulators

dura regulator

Salient Features

red_btn First time in India a regulator suitable for 300 bar intel pressure and imported safety pressure    gauges designed for 400 bar pressure, confirming to ISO 5171 standards.

red_btn Much more rugged.

red_btn Longer life.

red_btn Much bigger plenum chamber (2nd stage plenum chamber is 5 times the volume of 1st stage    plenum chamber) ensures : a> Outlet pressure stability. b> Steady flow of gasess.

red_btn Fire retardant valve material.

red_btn Stainless Steel Diaphragm in 1st stage can withstand stock of full cylinder pressure.

red_btn Neoprene valve in 2nd gives flexibility and better pressure regulation.

red_btn ISI Certification.

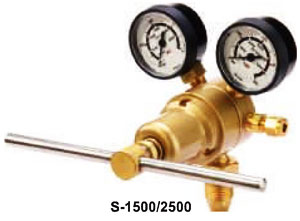

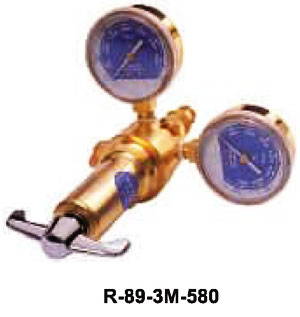

S-1500/2500 & R-89 High Pressure Regulators

high pressure regulator

red_btn Typical application include cartridge filling, pressure testing of vessels and pressurization of    recoil cylinders.

red_btn For high delivery pressure - 200 to 6000 psig.

red_btn Standard HP cylinder connections - ready to use on cylinders or manifols. Standard 1/4 in.    NP 1 to 37 deg. Flared tubing outlet connection on R-89 models.

red_btn Forged brass bodies.

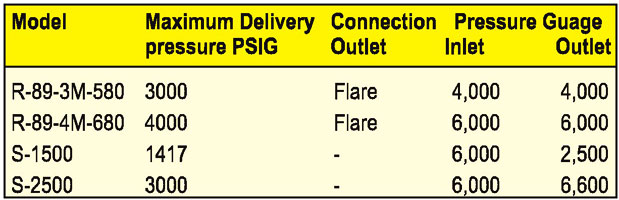

Specifiction

high pressure specifiction high pressure regulator

Nozzle Mixing Type Hand Cutting Blowpipe NM250 / NM400

New generation Nozzle Mixing Technology for new standards in Safety and Efficiency, light weight (1.44 kg) NM Cutters are easy to handle and can withstand rough usage for longer time. Not only piercing is made easier by NM Cutters, but they can aslo be used for gouging with NM 400 Torch and suitable Nozzles.

Read Morered arrow
