GCE - ECO Saver

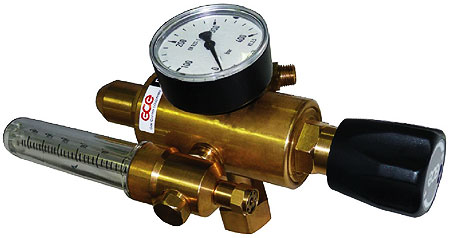

Argon / Co2 Regulator with flow meter and integrated gas saver function

ecosaver

The ECOSAVER device reduce the waste of gas especially in case of the non-continuous welding process

red_btn Cylinder Regulator - 200 bars inlet pressure, 2-30 l/min

red_btn Reduce the inlet pressure from 200 bars in two stages

red_btn Save gas during inlet pressure changes(Consumption of cylinder)

red_btn Saves gas during flow changes(non-continuous welding)

red_btn Available with connections for most markets in Europe

The ECOSAVER keeps a constant level of the gas pressure on the downstream side at the end and beginning of each weld. This prevents that pressure and flow-surges that are created in the pipe line system. The pressure and flow-surge create gas waste and can cause a poor weld. The gas saver device eliminates all mentioned spurious effects.

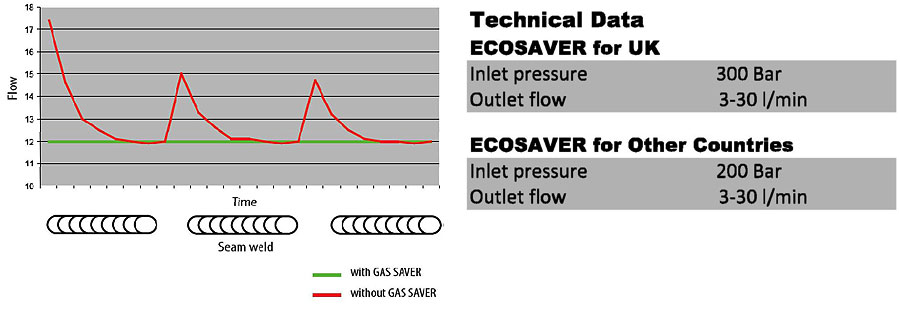

Compare of regulator with and without GAS SAVER

graph

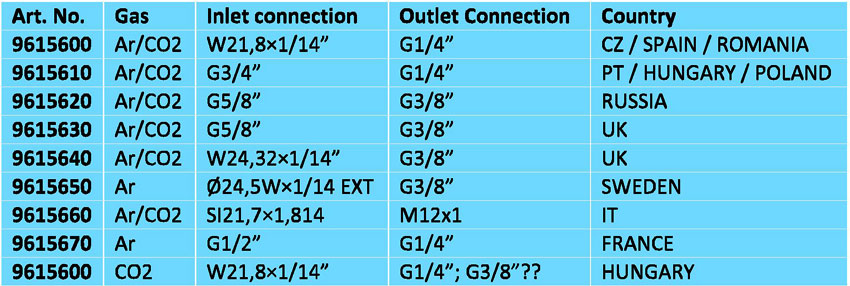

System Data

ecosever data
